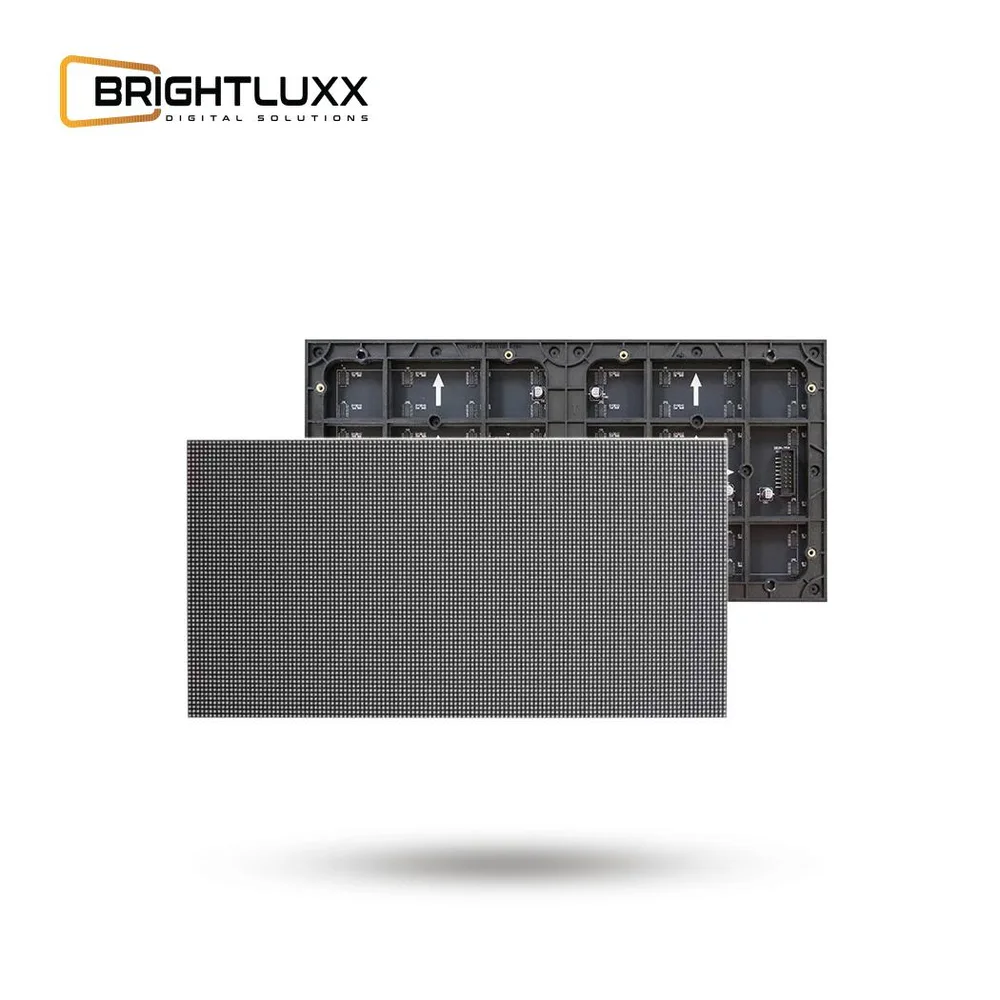

BRIGHTLUXX P1.86mm 320x160mm SMD1515 600 nits;3840hz FRONT MAINTENANCE INDOOR LED MODULE

Description

Category List: LED SCREEN MODULES Series Name: P1.86mm Brand: BRIGHTLUXX Short Description: P1.86mm 320x160mm SMD1515 600 nits;3840hz FRONT MAINTENANCE INDOOR LED MODULE Range: INDOOR Working Temp: -20°C~+60°C Dimension: 320x160mm Remarks: Physical Parameter:- Pixel Pitch: 1.86 mm < br> LED Type SMD1515 Pixel composition 1R1G1B Pixel Density 288369Dots/㎡ Module Size (WxH) 320*160*14mm Module Resolution 172*86Dots Module Weight 0.45Kg Signal input interface type: HUB75 Structural characteristics: Flexible connection Cascading Non-cascading Flatness ≤0.2mm Optoelectronic Parameter:- Input Voltage (DC) 4.2~4.5V Maximum Current 4A Frame Rate ≥60Hz Brightness ≥600cd/m² Contrast 5000:1 Grey Level 12-14bit Refresh Rate ≥3840Hz Scan Ratio 1/43 Color Temperature 9000~10000K Viewing Angle(H) 160±10deg. Viewing Angle(V) 140±10deg. Application:- AC Operating Voltage 200~240V AC Input Frequency 50/60Hz Power Consumption (Max./Avg.) ≤20W Storage Temperature ﹣20~﹢50℃ Operating Temperature ﹣20~﹢50℃ Storage Humidity 10﹪~90﹪RH Operating Humidity 10﹪~90﹪RH IP Rating (Front/Rear) IP30 Installation Support: Magnetic mounting Maintenance Method: Front Maintenance Optimal Viewing Distance ≥3m Lifespan ≥100,000hours
