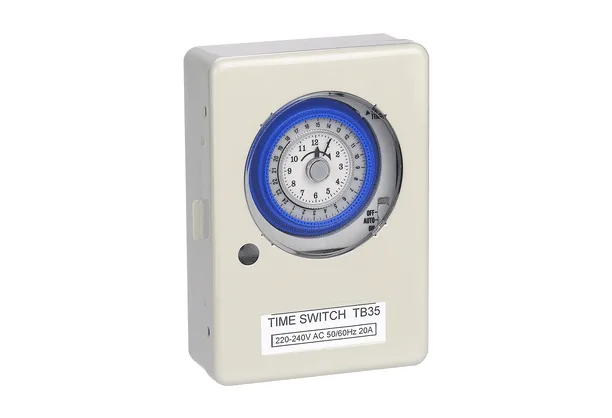

FMT101 FLAMILANO 24 HOURS AUTOMATIC MECHANICAL TIMER SWITCH TB-35

Description

Category:TIMERS & CONTROLLERS Category List: TIMERS & CONTROLLERS Sub Category: [<Document: cc9883a2ad parent=FMT101>] Series: TB35 Brand: FLAMILANO Short Description: FLAMILANO 24 HOURS AUTOMATIC MECHANICAL TIMER SWITCH TB-35 Range: INDOOR Working Temp: -10°C~+50°C Input: 100-240VAC Dimension: 150x105x50mm Warranty Type : Replace Warranty : 1 Year Remarks: Type: TB35 Operating Voltage: 100-240VAC Voltage Tolerance: 85-265VAC Power Consumption: 110VAC 1W, 220VAC 2W Drive Method: Quartz Controlled Stepping Motor Circuit: Separate circuit(Voltage is not applied to the load circuit) Switch Construction: SPST Manual ON/OFF: ON: AUTO/OFF: Switch Resistive Load: 15A Incandascent Lamp: 10A Inductive(cosф=0.7): 12A Motor(cosф=0.7): 110VAC 750W, 220VAC 1500W Present Time Setting: Turn the minute control knob in the center clock On/Off program setting: 15 Minutes Minimum Unit: 15 minutes Minimum Interval: 15 Minutes No Of ON/OFF operations: 96 operations Working Reserve time: 150 hours Ambient Temp: -10°C-+50°C Ambient Humidity: Max.85% Dimension: 150x105x50mm Weight: 550G Installing mode: Screw fixing
